Oceana Gris
Get lost in the subtle waves and appealing textures of Oceana Gris porcelain tile. Available in 3 tile sizes, 2 mosaics and 2 finishes.

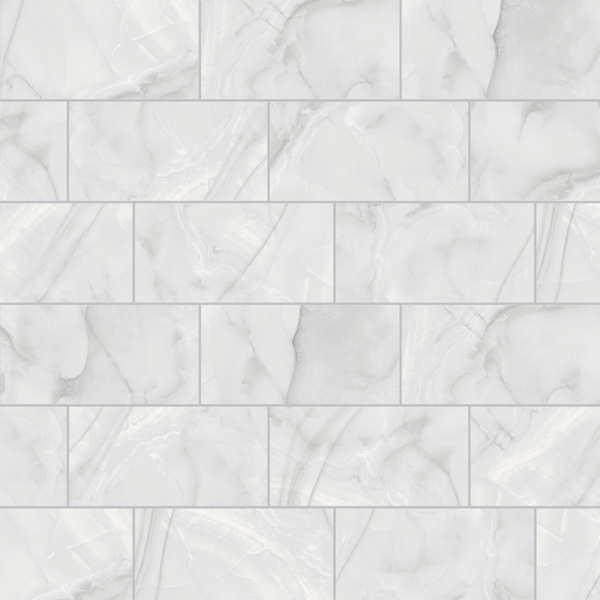

Variations
Installation Photos
|
|
|
|
General Specifications – Polished
| Description | Method | Unit | 12 x 24 | 24 x 24 | 24 x 48 |
|---|---|---|---|---|---|
| Actual Size | ISO 10545-2 | mm – in | 300 x 600 mm – 11.8 x 23.6 in | 600 x 600 mm – 23.6 x 23.6 in | 600 x 1200 mm – 23.6 x 47.2 in |
| Thickness | ISO 10545-2 | mm – in | 9.6 mm – 0.38 in | 9.6 mm – 0.38 in | 11.3 mm – 0.45 in |
| Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| Abrasion Resistance | ISO 10545-7 | (PEI) | Class 4 | Class 4 | Class 4 |
| Scratch Hardness | EN 15771 | (Mohs) | 5 | 5 | 5 |
| Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA |
| Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | |
| DCOF | ANSI A137.1 | (μ) | ≤ 0.15 | ≤ 0.15 | ≤ 0.15 |
General Specifications – Matte
| Description | Method | Unit | 12 x 24 | 24 x 24 | 2×2 Mosaic | 2in Hex Mosaic |
|---|---|---|---|---|---|---|
| Actual Size | ISO 10545-2 | mm – in | 300 x 600 mm – 11.8 x 23.6 in | 600 x 600 mm – 23.6 x 23.6 in | 298 x 298 mm – 11.73 x 11.73 in | 323 x 300 mm – 12.72 x 11.81 in |
| Thickness | ISO 10545-2 | mm – in | 9.6 mm – 0.38 in | 9.6 mm – 0.38 in | 9.6 mm – 0.38 in | 9.6 mm – 0.38 in |
| Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 | ≤ 0.05 |
| Abrasion Resistance | ISO 10545-7 | (PEI) | Class 3 | Class 3 | Class 3 | Class 3 |
| Scratch Hardness | EN 15771 | (Mohs) | 5 | 5 | 5 | 5 |
| Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 | ≥ 1300 |
| Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA | Class GLA |
| Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | Fully Resistant | |
| DCOF | ANSI A137.1 | (μ) | ≤ 0.54 | ≤ 0.54 | ≤ 0.54 | ≤ 0.54 |
