Aspen Wood Series
Providing an elegant hardwood look while conserving the Earth’s natural resources. Aspen captures the refined nuances of the forest’s natural color pallet, highlighting the wood’s tonality and depth of character. Just as the woodworking process requires patience and attention to detail, the skill and artistry of the master carpenter comes to life through this man made product.
A seamless replication of hardwood flooring in a porcelain tile. A realistic texture emulating the rich detailed patterns of natural wood, but with the strength and durability to last in high traffic areas.
8″x48″ Tiles
6″x36″ Tiles
4″x24″ Tiles

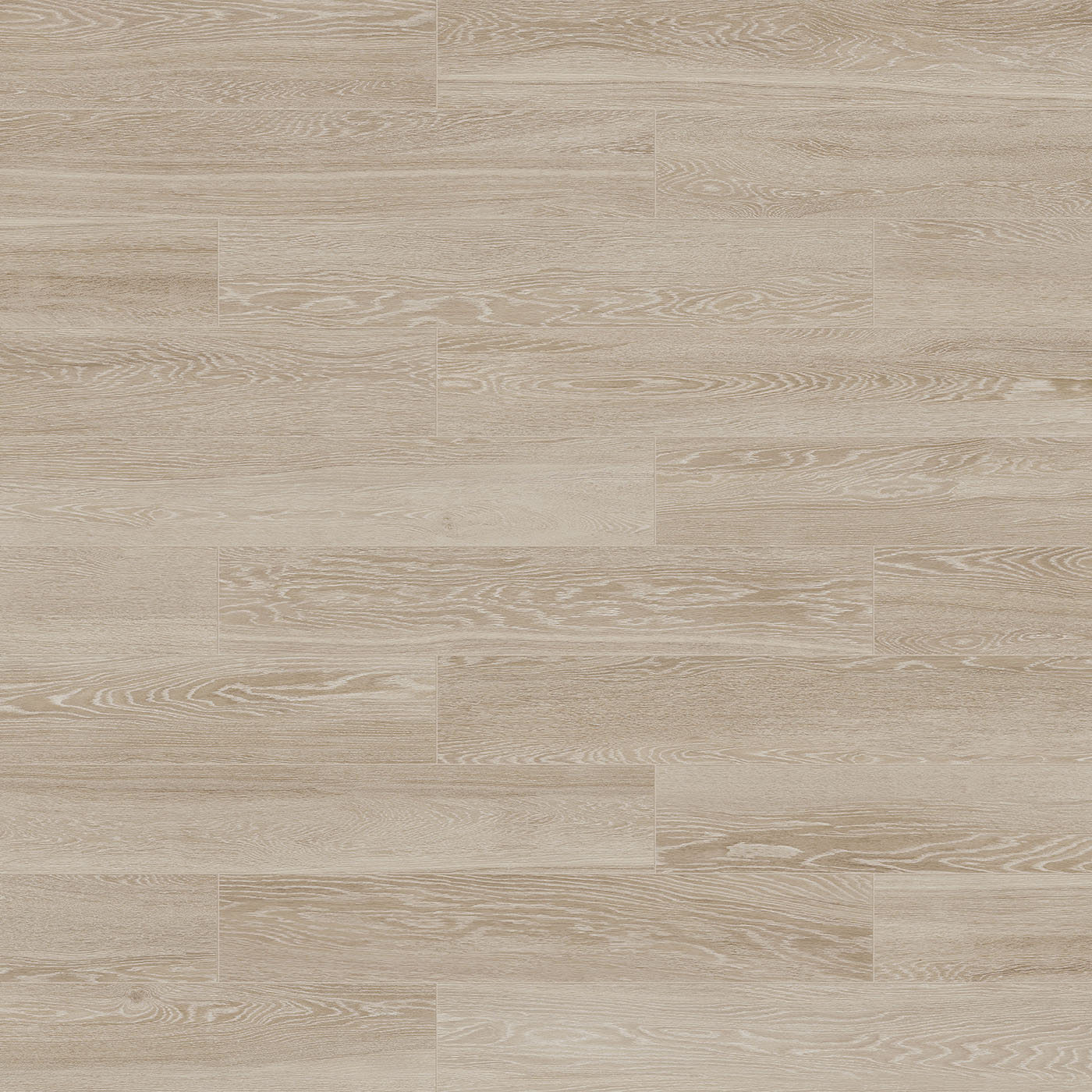

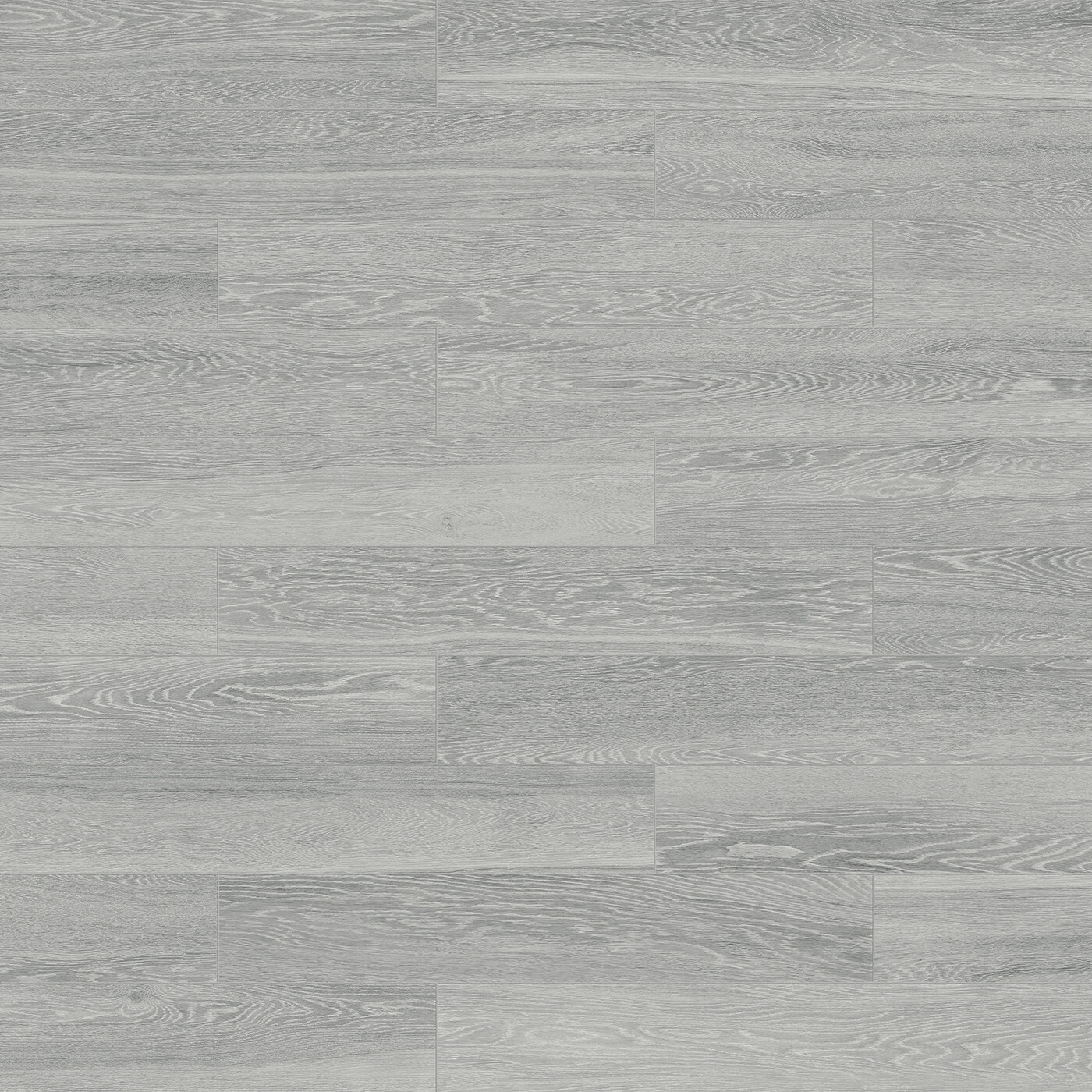

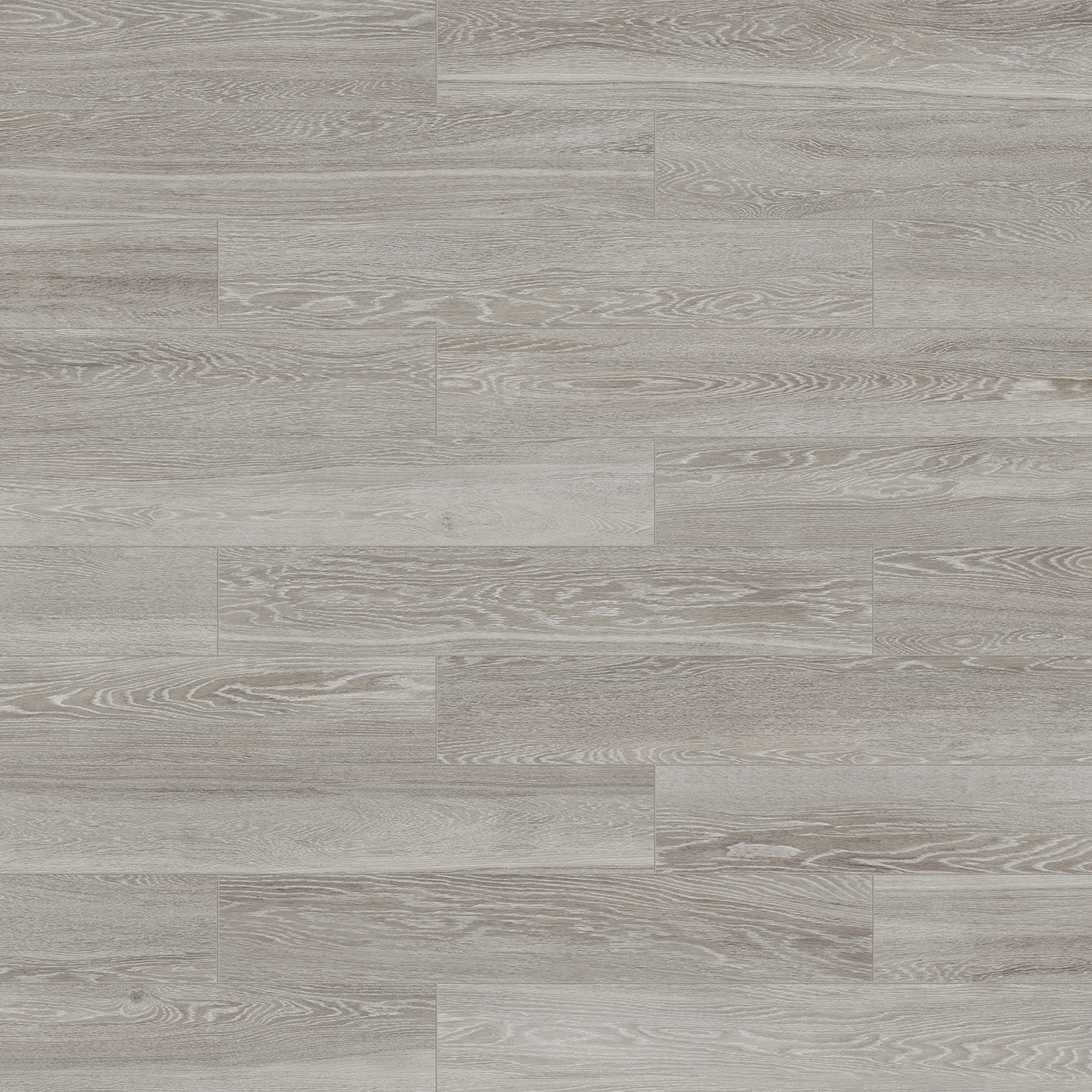

Variation

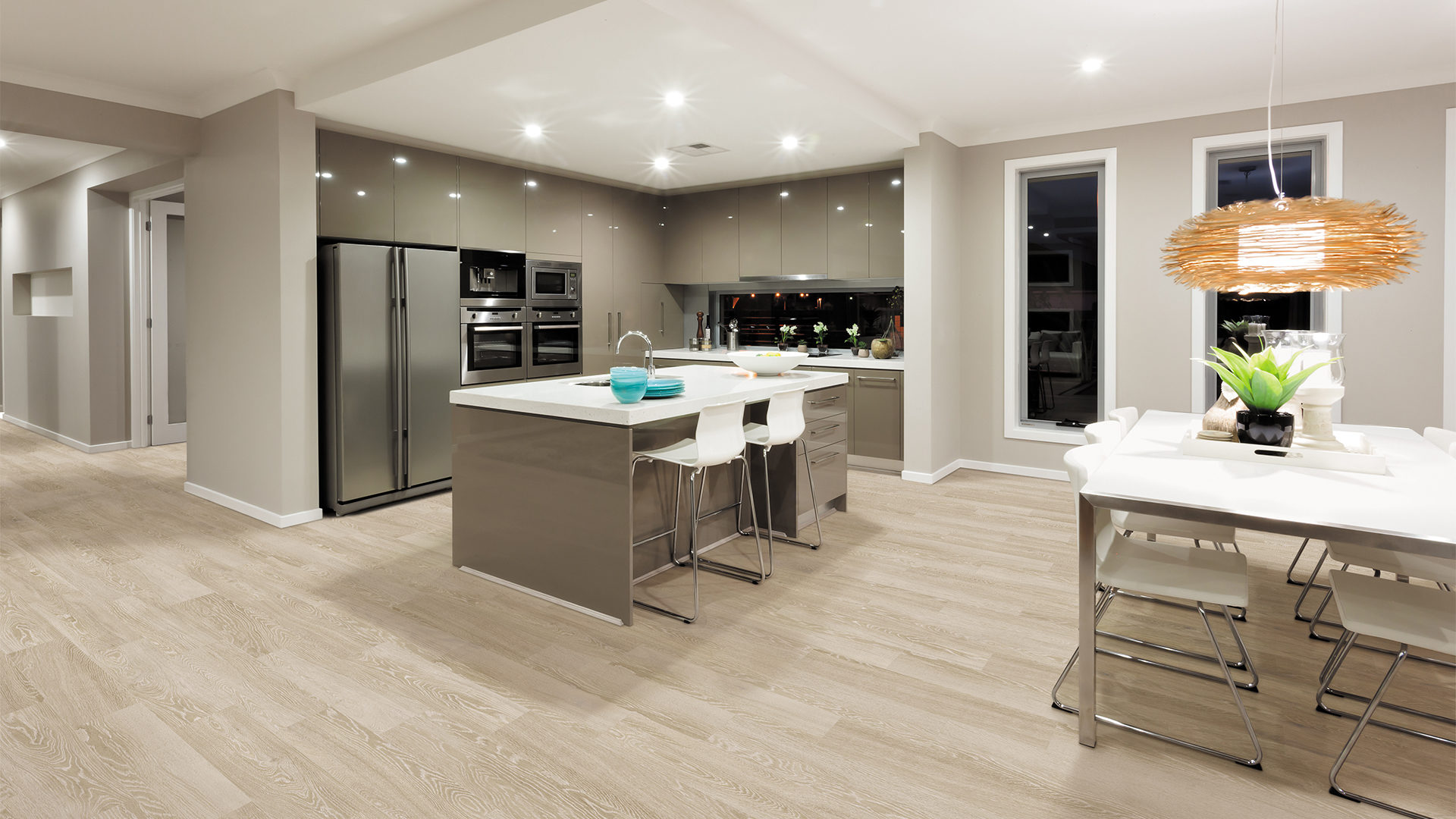

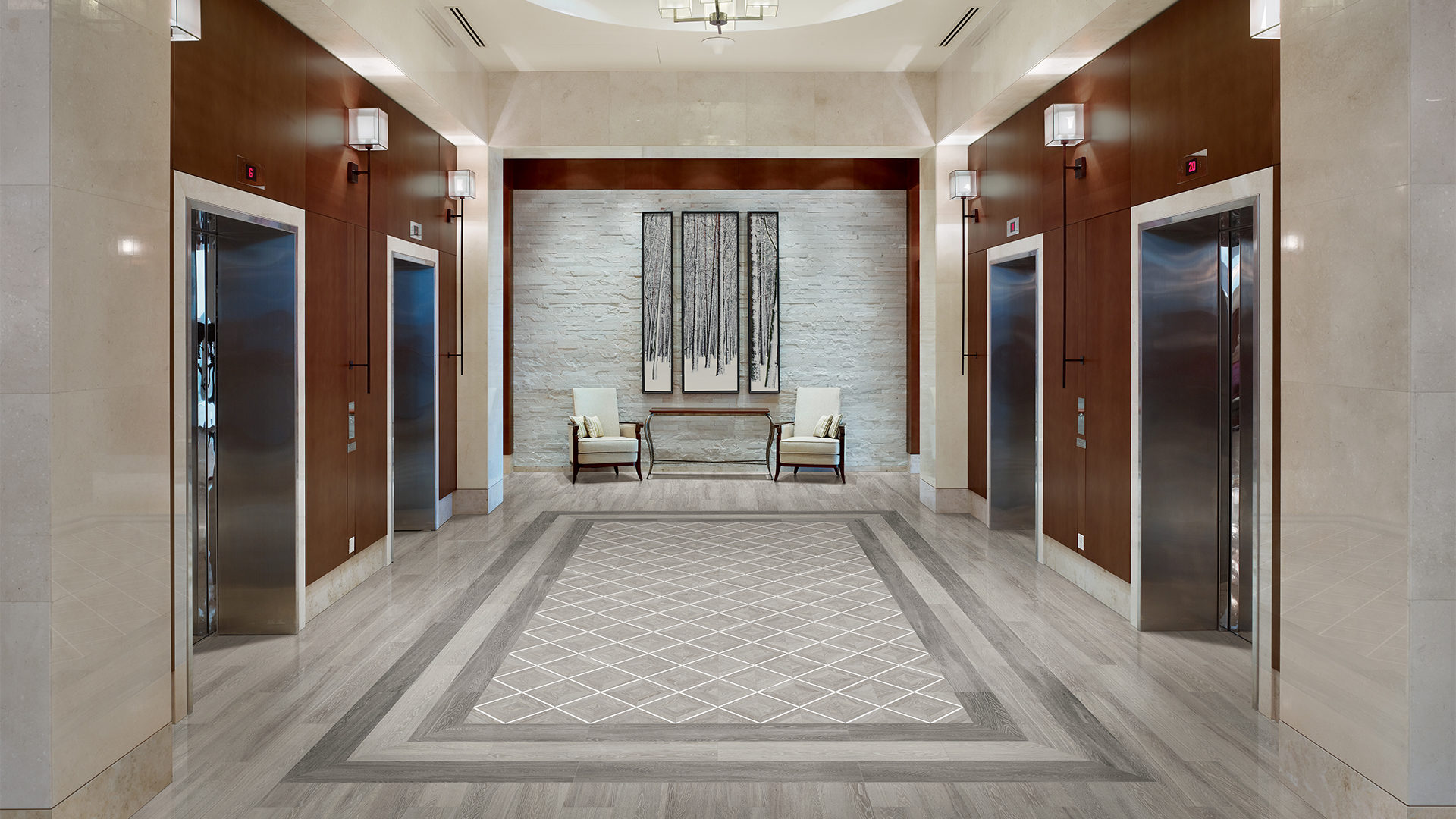

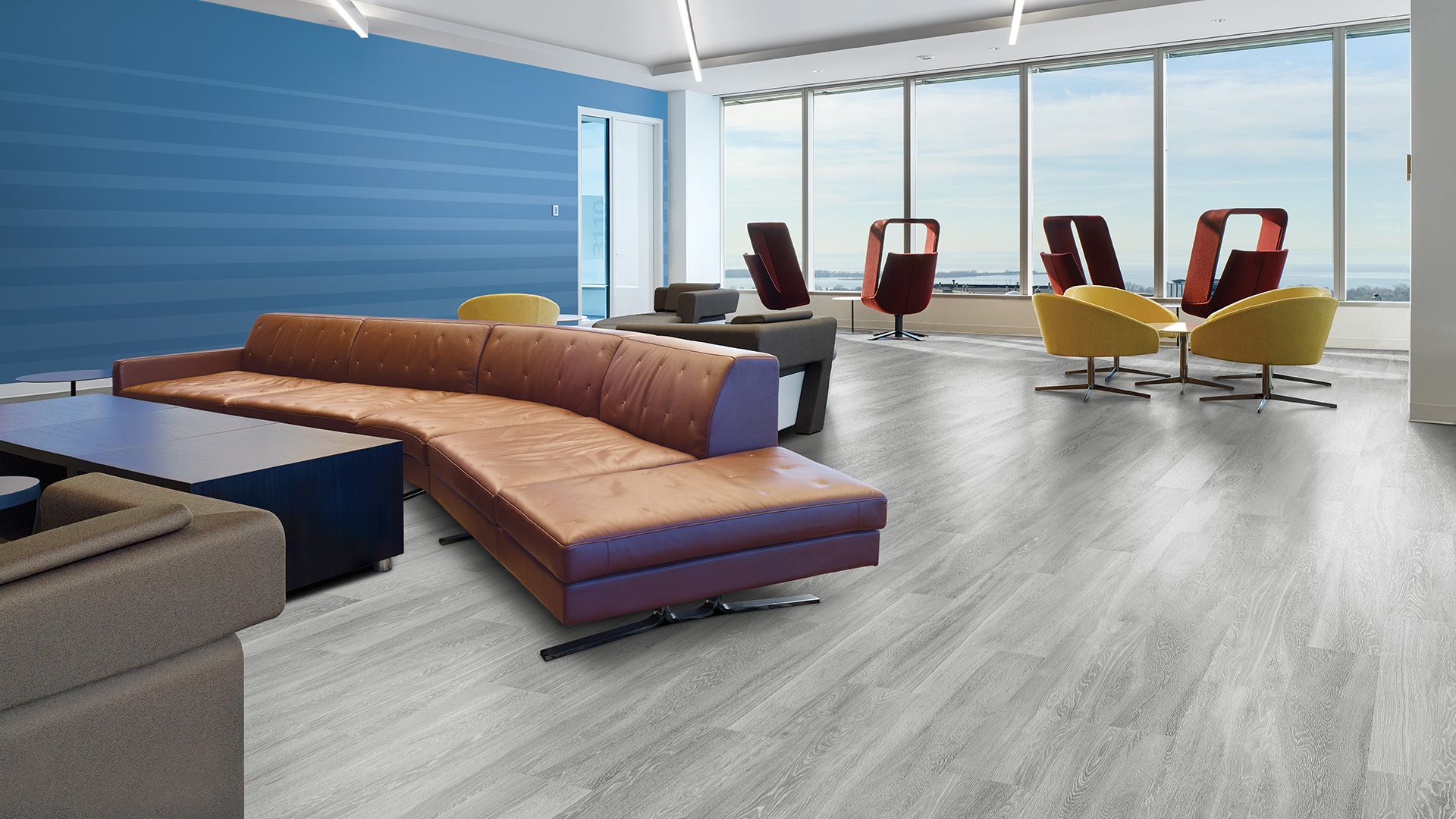

Installation Photos
|
|
|
|
General Specifications
| description | method | unit | 8 x 48 | 6 x 36 | 4 x 24 | Actual Size | mm – in | 197 x 1200 mm – 7.76 x 47.24 in | 147 x 900 mm – 5.79 x 35.43 in | 98 x 600 mm – 3.94 x 23.62 in |
|---|---|---|---|---|---|
| Thickness | mm – in | 10.3 mm – 7/16 in | 10 mm – 3/8 in | 10.3 mm – 7/16 in | |
| Water Absorption | EN ISO 10545-3 | ( % ) | ≤ 0.5 | ≤ 0.5 | ≤ 0.5 |
| Abrasion Resistance | EN ISO 10545-7 | (PEI) | 4 | 4 | 4 |
| Scratch Hardness | (Mohs) | 7 | 7 | 7 | |
| Breaking Strength | EN ISO 10545-4 | (lbf) | ≥ 300 | ≥ 300 | ≥ 300 |
| Chemical Resistance | EN ISO 10545-13 | (GL) | Class A – Resistant | Class A – Resistant | Class A – Resistant |
| Frost Resistance | EN ISO 10545-12 | Resistant | Resistant | Resistant | |
| DCOF (Wet) | ANSI B101.3 | ≥ 0.42 | ≥ 0.42 | ≥ 0.42 |
Packaging Information
| Description | Item Code | lbs/pc | pcs/box | lbs/box | sq ft/box | pcs/skid | sq ft/skid |
|---|---|---|---|---|---|---|---|
| Aspen Ash 8×48 Matte | 351-4500-0053-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen Ash 6×36 Matte | 315-4500-0052-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen Ash 4×24 Matte | 315-4500-0054-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen Ash Marquetry Mosaic Matte | 351-4501-0013-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Beachcomber 8×48 Matte | 351-4500-0056-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen Beachcomber 6×36 Matte | 315-4500-0055-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen Beachcomber 4×24 Matte | 315-4500-0057-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen Beachcomber Marquetry Mosaic Matte | 351-4501-0015-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Beachcomber Statuario Marquetry Mosaic Matte | 351-4501-0014-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen French Oak 8×48 Matte | 351-4500-0059-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen French Oak 6×36 Matte | 315-4500-0058-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen French Oak 4×24 Matte | 315-4500-0060-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen French Oak Marquetry Mosaic Matte | 351-4501-0016-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Grey Ridge 8×48 Matte | 351-4500-0062-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen Grey Ridge 6×36 Matte | 315-4500-0061-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen Grey Ridge 4×24 Matte | 315-4500-0063-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen Grey Ridge Marquetry Mosaic Matte | 351-4501-0018-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Grey Ridge Statuario Marquetry Mosaic Matte | 351-4501-0018-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Paper Birch 8×48 Matte | 351-4500-0065-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen Paper Birch 6×36 Matte | 315-4500-0064-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen Paper Birch 4×24 Matte | 315-4500-0066-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen Paper Birch Marquetry Mosaic Matte | 351-4501-0019-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Sequoia 8×48 Matte | 351-4500-0068-0 | 13.06 | 4 | 52.24 | 10.68 | 156 | 416.52 |
| Aspen Sequoia 6×36 Matte | 315-4500-0067-0 | 6.21 | 8 | 49.68 | 12 | 288 | 417.6 |
| Aspen Sequoia 4×24 Matte | 315-4500-0069-0 | 2.756 | 10 | 27.56 | 6.7 | 750 | 502.5 |
| Aspen Sequoia Marquetry Mosaic Matte | 351-4501-0021-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
| Aspen Sequoia Statuario Marquetry Mosaic Matte | 351-4501-0020-0 | 6.5625 | 8 | 52.5 | 14.24 | 288 | 484.56 |
