Marquina Plus Series

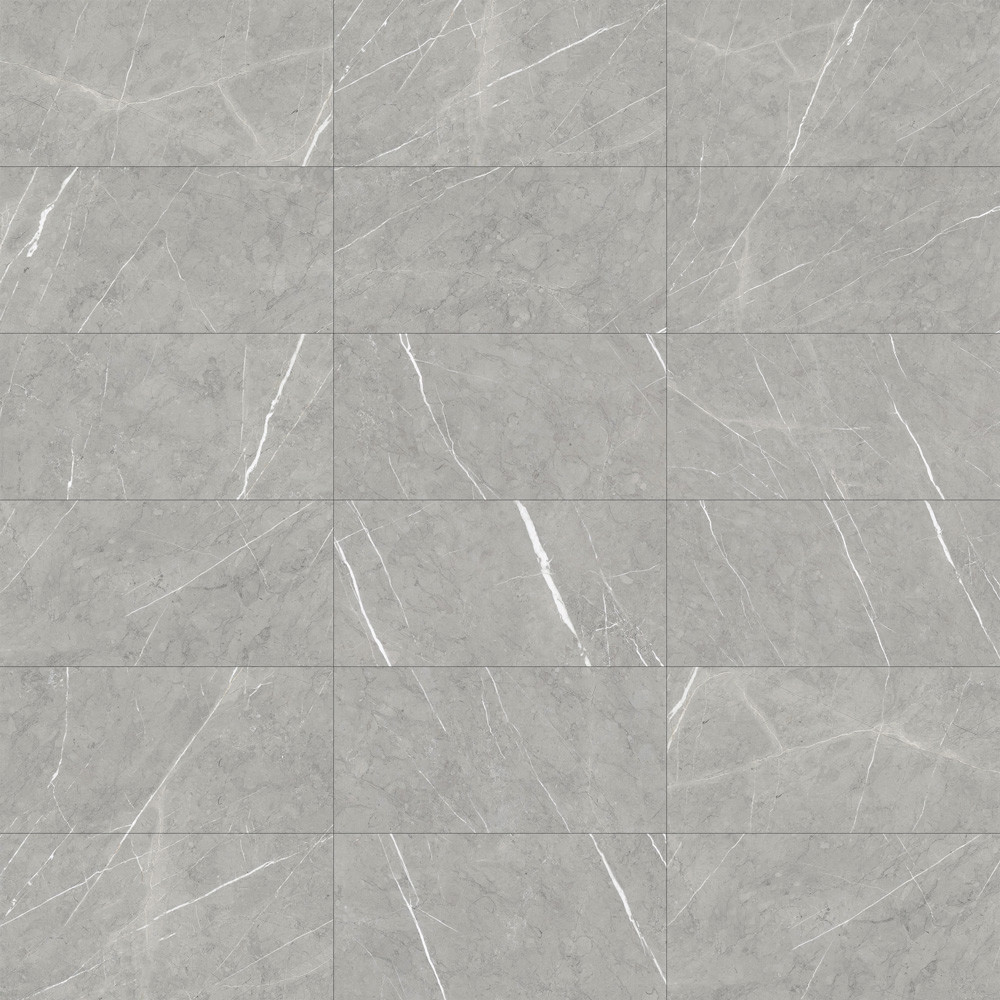

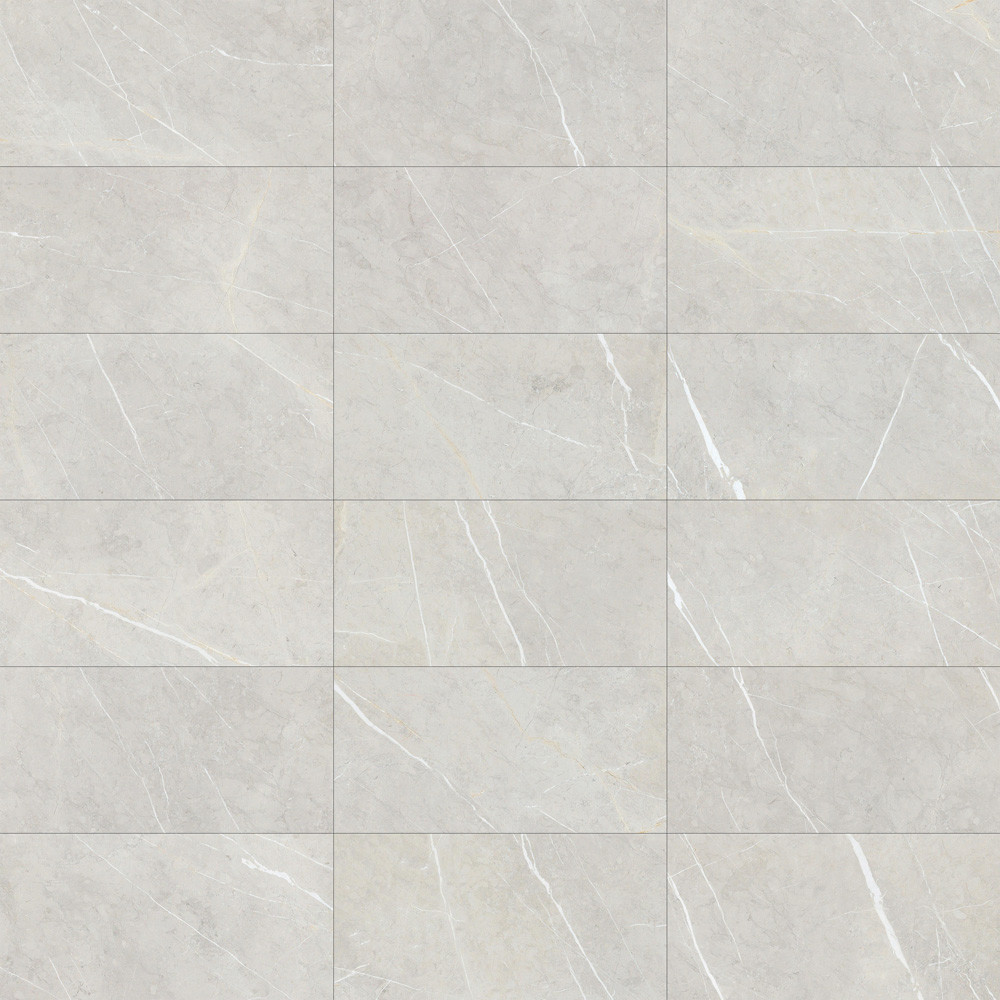

Marquina Plus offers a natural stone look with the colour consistency and durability of porcelain. Delicate white veining graces two different shades of grey. The staggering size, quality and detail of Marquina Plus’s high-definition print allows for fourty-eight different tiles in the 12×24 size. With such variance, you’ll have many doing a double take when attempting to differentiate this man-made material from stone. Available in both a polished and satin matte finish.
|
|
General Specifications – Polished
Description | Method | Unit | 12 x 24 |
---|---|---|---|
Actual Size | ISO 10545-2 | mm – in | 297 x 600 mm – 11.8 x 23.6 in |
Thickness | ISO 10545-2 | mm – in | 9.6 mm – 0.38 in |
Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.1 |
Abrasion Resistance | ISO 10545-7 | (PEI) | Class 3 |
Scratch Hardness | EN 15771 | (Mohs) | 5 |
Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 |
Chemical Resistance | ISO 10545-13 | (GL) | Class GLA |
Frost Resistance | ISO 10545-12 | Fully Resistant | |
DCOF | ANSI A137.1 | (μ) | ≤ 0.15 |
General Specifications – Satin Matte
description | method | unit | 12 x 24 | 2 x 2 | 2″ Hexagon |
---|---|---|---|---|---|
Actual Size | ISO 10545-2 | mm – in | 297 x 600 mm – 11.8 x 23.6 in | 298 x 298 mm – 11.73 x 11.73 in | 323 x 330 mm – 12.72 x 12.99 in |
Thickness | ISO 10545-2 | mm – in | 10 mm – 0.39 in | 10 mm – 0.39 in | 10 mm – 0.39 in |
Water Absorption | ISO 10545-3 | ( % ) | ≤ 0.1 | ≤ 0.1 | ≤ 0.1 |
Abrasion Resistance | ISO 10545-7 | (PEI) | Class 4 | Class 4 | Class 4 |
Scratch Hardness | EN 15771 | (Mohs) | 8 | 8 | 8 |
Breaking Strength | ISO 10545-4 | (N) | ≥ 1300 | ≥ 1300 | ≥ 1300 |
Chemical Resistance | ISO 10545-13 | (GL) | Class GLA | Class GLA | Class GLA |
Frost Resistance | ISO 10545-12 | Fully Resistant | Fully Resistant | Fully Resistant | |
DCOF | ANSI A137.1 | (μ) | ≤ 0.54 | ≤ 0.54 | ≤ 0.54 |
Packaging Information
Description | Item Code | lbs/pc | pcs/box | lbs/box | sq ft/box | pcs/skid | sq ft/skid |
---|---|---|---|---|---|---|---|
Marquina Plus Light Grey 12×24 Polished | 332-101 | 9.00 | 8 | 72.00 | 16.00 | 320 | 640.00 |
Marquina Plus Dark Grey 12×24 Polished | 332-103 | 9.00 | 8 | 72.00 | 16.00 | 320 | 640.00 |
Marquina Plus Light Grey 12×24 Satin Matte | 332-105 | 9.00 | 8 | 72.00 | 16.00 | 320 | 640.00 |
Marquina Plus Dark Grey 12×24 Satin Matte | 332-107 | 9.00 | 8 | 72.00 | 16.00 | 320 | 640.00 |
Marquina Plus Light Grey 2″ Hexagon Satin Matte | 332-835-106 | 4.409 | 10 | 44.09 | 10.00 | 450 | 450.00 |
Marquina Plus Dark Grey 2″ Hexagon Satin Matte | 332-835-107 | 4.409 | 10 | 44.09 | 10.00 | 450 | 450.00 |
Marquina Plus Light Grey 2×2 Satin Matte | 332-835-113 | 4.01 | 10 | 40.10 | 10.00 | 594 | 594.00 |
Marquina Plus Dark Grey 2×2 Satin Matte | 332-835-114 | 4.01 | 10 | 40.10 | 10.00 | 594 | 594.00 |
